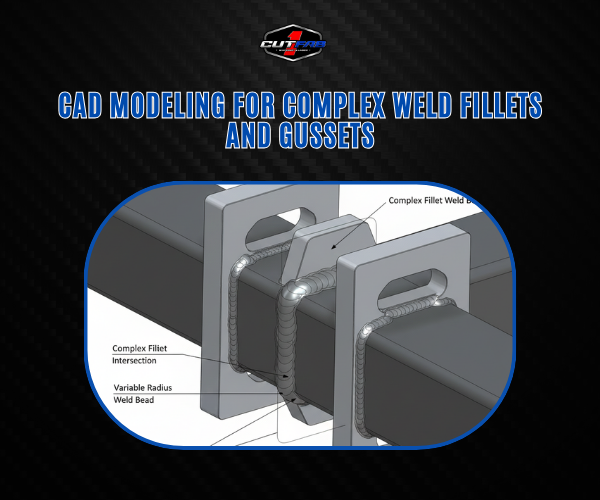

CAD Modeling for Complex Weld Fillets and Gussets!
In modern fabrication, weld fillets and gussets aren’t just supporting features—they’re the backbone of structural integrity. Whether you’re designing a lightweight bracket or a load-bearing frame, the way you model these elements in CAD directly affects strength, manufacturability, and long-term durability. Yet many engineers still treat fillets and gussets as last-minute add-ons, leading to stress concentrations, distortion, and welding inefficiencies. This is where smart CAD weld fillet gusset design becomes essential. When modeled correctly, these features reduce failures, distribute loads smoothly, and shorten fabrication time—turning a good design into a production-ready one.
Best Practices for Modeling Fillets in CAD
Fillets may look simple on the surface, but in real-world fabrication they’re one of the most misunderstood elements in CAD modeling. A well-designed fillet reduces stress concentrations, improves weld accessibility, and ensures predictable load paths. A poorly modeled one? It can introduce distortion, weaken joints, and create manufacturing bottlenecks. That’s why understanding how to optimize your CAD weld fillet gusset design is essential for both structural performance and production efficiency.
Start with functional fillets, not cosmetic ones. Many designers add identical radius values everywhere, but real parts rarely benefit from uniform radiusing. Instead, let the load path dictate your geometry. Areas with bending forces need larger radii, while light-duty connections may require only minimal smoothing. Always model fillets after establishing your primary geometry—early filleting can lock your design and make downstream edits painful.
Next, consider weld accessibility. CAD fillets that look elegant on-screen often don’t translate well on the shop floor. Ensure the radius provides the needed space for welding tools, especially in tight corners or deep pockets. Using design tables or parametric variables can help maintain consistent, manufacturable weld fillet sizes across complex assemblies.
Another best practice is understanding fillet transitions. Abrupt radius changes cause stress spikes and create unpredictable weld pools. Use tangent or curvature-continuous fillets where possible to maintain smooth stress flow. For heavy-duty structures, combine fillets with small bevels or lead-ins to improve weld penetration.
Finally, always validate your fillets with FEA and fabrication feedback. Simulation helps you spot stress risers early, while welders can tell you if a fillet is realistic or overly tight. When both of these align, you get a fillet design that is strong, efficient, and production-ready—exactly what the best CAD weld fillet gusset design aims to achieve.
Parametric Design Approaches for Gusset Strength
When it comes to structural reinforcement, gussets carry the heavy responsibility of transferring loads smoothly and preventing deformation. But manually sizing gussets for every variation of load, angle, and material is inefficient—and often inaccurate. This is where a parametric approach transforms your CAD weld fillet gusset design from guesswork into engineering precision.
A strong parametric workflow starts with defining key variables: thickness, length, width, angle, weld throat size, and load direction. Instead of modeling a fixed shape, you create a smart gusset driven by formulas and constraints. As loads increase, the gusset thickens; as angles shift, the profile adapts; as materials change, the reinforcement geometry recalculates. This ensures your design remains structurally sound across all configurations—without redrawing anything.
Another advantage is automated load-driven optimization. By linking parameters to simulation results, you can create gussets that grow only where stress demands reinforcement. For example, a triangular gusset may automatically extend its base or increase its fillet radius when FEA shows high bending moments. This avoids overbuilding while ensuring consistent strength.
Parametric gusset design also improves weld planning. You can set rules that recalculate weld leg sizes or modify fillet blends based on gusset thickness. This keeps the model manufacturable and reduces mismatches between CAD intent and shop-floor execution.
Finally, with parametric templates, you ensure repeatability across assemblies. Instead of reinventing the wheel, your entire team reuses optimized gusset modules tailored for different load conditions. It’s faster, cleaner, and far more reliable—exactly what modern CAD weld fillet gusset design demands for high-performance engineering.
Simulating Weld Stress and Load in CAD
Accurate simulation is one of the most powerful steps in optimizing your CAD weld fillet gusset design. While traditional CAD focuses on geometry, modern engineering demands a deeper understanding of how welds behave under real loads—tension, compression, shear, bending, and fatigue. This is where integrated FEA tools inside CAD platforms become invaluable.
Start by building a true representation of the weld region, not just a cosmetic bead. Use weld beads, fillet definitions, or simplified throat models to approximate weld mass and stiffness. Many engineers skip this step, leading to simulations that look clean but fail to match real-world behavior. The goal is not to create a perfect weld bead model, but to capture the load path accurately.
Next, apply realistic boundary conditions. Welded structures often transfer loads differently than bolted or riveted parts. A rigid constraint on the wrong side can artificially stiffen the joint and misrepresent stress patterns. Instead, use distributed loads, contact simulations, or bonded interactions that mimic true weld behavior. When simulating gussets, apply directional forces and moments based on expected real-world load cases—vertical loads for brackets, torsional loads for frames, or vibrational loads for machine components.
A critical step is mesh refinement around welds. Stress concentrations in fillets and gusset interfaces require fine meshing to produce dependable results. Coarse mesh gives you misleading low-stress values, while a refined mesh reveals the true hotspots where weld failure might begin. Many CAD tools provide automated mesh controls specifically for fillets and narrow gusset edges—use them.
Finally, interpret results with a practical eye. Simulations show where stresses accumulate, but what matters is translating that data into design improvements. Increase fillet radii, adjust gusset angles, thicken plates, or modify weld throat size based on what the FEA reveals. When done well, simulation turns your CAD weld fillet gusset design into a validated, failure-resistant structure ready for fabrication.
Translating CAD Designs to Fabrication Instructions
No matter how optimized your model is, a CAD weld fillet gusset design only becomes valuable when it can be built consistently on the shop floor. The gap between CAD intent and fabrication reality is where many engineering projects fail—incorrect weld sizes, missing details, unclear gusset dimensions, or misunderstood tolerances. That’s why translating your CAD model into precise, practical fabrication instructions is just as important as the design itself.
Start with clear weld callouts. Every fillet and gusset weld should specify leg size, throat size, length, and type (intermittent, full-length, plug, bevel, etc.). Avoid vague notes like “Weld as required”—they lead to inconsistent strength and rework. Use standard welding symbols and ensure they match your company’s or industry’s documentation norms. If multiple weld types exist on the same assembly, organize them using weld tables to eliminate confusion.
Next, provide flattened models and cut-ready profiles for gussets. Fabricators depend on clean DXF/DWG files with accurate kerf compensation for laser or plasma cutting. Ensure gusset notches, reliefs, and radii match the welding sequence and don’t clash with heat distortion patterns. Including bend lines for folded gussets or brake-formed supports helps reduce guesswork.
For assemblies, generate exploded views and step-by-step weld sequences. The order of welding directly affects distortion, stability, and access. A CAD-perfect design may become unweldable if gussets block torch access. Showing orientation, rotation, and placement prevents assembly errors—especially in complex frames.
Finally, integrate material specifications, tolerances, and QA checkpoints. State plate grade, thickness, allowable deformation, and inspection criteria. If FEA indicates critical stress zones, highlight them so welders can apply proper penetration and heat control.
When CAD, documentation, and fabrication speak the same language, your weld fillet and gusset designs move from theoretical perfection to real-world reliability—exactly what effective CAD weld fillet gusset design should deliver.
Conclusion – Ensuring Weld Strength Through Smart Design
Strong welds don’t happen by accident—they come from smart modeling, accurate simulation, and clear fabrication communication. When you approach your CAD weld fillet gusset design with intentional geometry, parametric logic, and real-world manufacturability in mind, every joint becomes more reliable. By combining best-practice fillet modeling, load-responsive gusset templates, and validated FEA insights, you create designs that hold up under stress and stay consistent on the shop floor. In the end, smart CAD work doesn’t just improve weld strength—it elevates the entire engineering and fabrication workflow.
