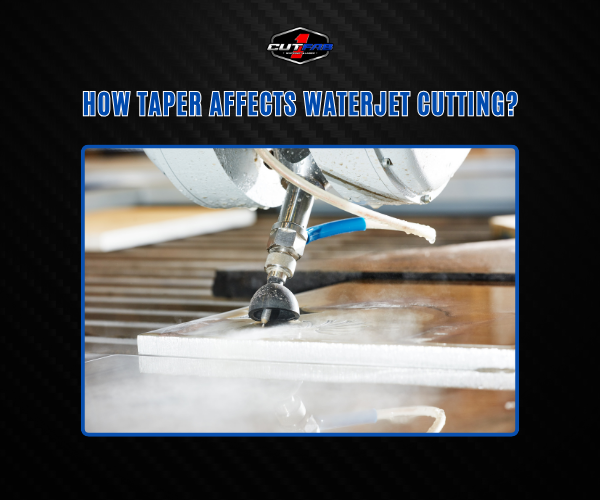

How Taper Affects Waterjet Cutting—and How to Minimize It!

When precision matters, even the smallest detail can have a big impact—and that's exactly why understanding taper in waterjet cutting is crucial. Taper refers to the slight angular deviation that occurs when the waterjet cut is narrower at the top and wider at the bottom, or vice versa. While it may seem insignificant at first glance, taper can lead to dimensional inaccuracies, poor edge quality, and unnecessary material waste—especially in high-tolerance projects.

Whether you're cutting metal, composites, stone, or plastic, taper affects not just the visual outcome but the performance of your parts. Left unaddressed, it can compromise assembly, strength, and fit. For manufacturers, fabricators, and designers alike, controlling taper is essential to delivering precise, high-quality results.

In this blog, we’ll break down what causes taper in waterjet cutting—and more importantly—how to minimize it for cleaner, more accurate cuts every time.

Factors That Cause Taper in Waterjet Cutting

If you’ve ever noticed angled edges or uneven cuts in your waterjet projects, you’ve likely encountered taper. While it’s a common issue, taper in waterjet cutting isn’t random—it’s driven by a few key variables. Let’s break down the main factors that influence taper so you can begin to control and reduce it.

1. Nozzle Speed

The speed at which the waterjet nozzle moves over the material is one of the biggest contributors to taper. When the nozzle travels too quickly, the jet doesn’t have enough time to cut all the way through with consistent force. This results in a wider cut at the top and a narrower finish at the bottom—known as positive taper. Slower cutting speeds, on the other hand, can help minimize this effect but may introduce other issues like overcutting or time inefficiency.

2. Abrasive Flow

The consistency and volume of abrasive in the cutting stream also play a crucial role. If the abrasive flow rate is too low or irregular, it reduces the cutting power of the waterjet, leading to uneven edges and greater taper. Optimal abrasive flow ensures the jet maintains full energy throughout the cut, reducing edge deviation.

3. Material Thickness

Thicker materials naturally present more challenges in waterjet cutting. As the waterjet penetrates deeper, it begins to lose cutting power and directional accuracy. This increased path length allows taper to become more pronounced, especially if the cutting parameters aren't properly adjusted for material thickness.

Understanding these three factors—nozzle speed, abrasive flow, and material thickness—is the first step toward achieving straighter, cleaner cuts. The more you can control these variables, the more you can reduce taper in your waterjet cutting operations.

Techniques to Reduce or Eliminate Taper

Now that we’ve pinpointed what causes taper in waterjet cutting, the next step is solving it. Fortunately, there are proven techniques that can drastically reduce—or even eliminate—taper altogether. With the right tools and settings, your cuts can be sharper, straighter, and more precise.

1. Taper Compensation Software

Modern waterjet machines often come equipped with taper compensation software, which is a game changer for precision work. These intelligent systems use real-time data to adjust the angle of the cutting head during the cut. Instead of keeping the nozzle vertical, the system tilts the head slightly to counteract natural taper tendencies.

By adjusting the cutting path dynamically, taper compensation allows for perfectly vertical cuts—even on thick or complex materials. It’s especially valuable when dealing with tight tolerances or intricate part geometries, where even slight angular variation could cause fit or function issues.

2. Optimized Cutting Parameters

Another effective way to combat taper in waterjet cutting is by optimizing cutting parameters. This includes tweaking the cutting speed, water pressure, standoff distance, and abrasive flow rate. For example, slowing down the nozzle just enough—without sacrificing efficiency—can significantly improve edge straightness. Similarly, increasing water pressure and ensuring consistent abrasive feed helps maintain cutting power throughout the depth of the material.

Material-specific settings are key. Cutting aluminum will require a different setup than cutting stainless steel or stone. Taking the time to dial in those variables ensures more uniform results and less taper, regardless of material type.

Together, taper compensation software and optimized cutting parameters offer a one-two punch for controlling edge quality and delivering high-precision results consistently.

When Taper Is Acceptable (and When It’s Not)

Not all taper is bad. In fact, taper in waterjet cutting can be completely acceptable—depending on the application. The key lies in understanding the tolerance requirements of your project and distinguishing between parts that are cosmetic versus those that are structural.

Tolerance Needs Vary by Application

Some parts allow for a bit of wiggle room. For example, decorative panels or display signage don’t usually require precision-perfect edges. In contrast, aerospace, automotive, and mechanical parts often demand tight tolerances where even minor taper can compromise performance, safety, or fit.

Cosmetic vs. Structural Considerations

It’s important to ask: Will the taper impact how the part functions or is assembled? If the part is purely aesthetic, you may have more flexibility. But if it needs to interlock, bear weight, or move, taper must be minimized—or eliminated entirely.

Here’s a quick breakdown to guide your decision-making:

Always match your taper tolerance to the real-world function of the part. When in doubt, tighter control is the safer choice—especially in structural or high-performance settings.

Conclusion

Understanding and controlling taper in waterjet cutting isn’t just about improving aesthetics—it’s about ensuring precision, performance, and part integrity. From nozzle speed and abrasive flow to material thickness and cutting parameters, several factors influence how much taper shows up in your final product.

The good news? With the right techniques—like taper compensation software and optimized settings—you can significantly reduce or even eliminate unwanted taper. But these solutions require experience, technical know-how, and the right equipment.

That’s why it pays to partner with shops that specialize in taper control. A knowledgeable fabrication partner won’t just deliver clean, straight cuts—they’ll help you avoid costly rework, fitment issues, and design flaws before they happen.

If precision is your priority, don’t leave taper to chance. Work with experts who treat every cut like it counts—because in today’s competitive landscape, it absolutely does.
