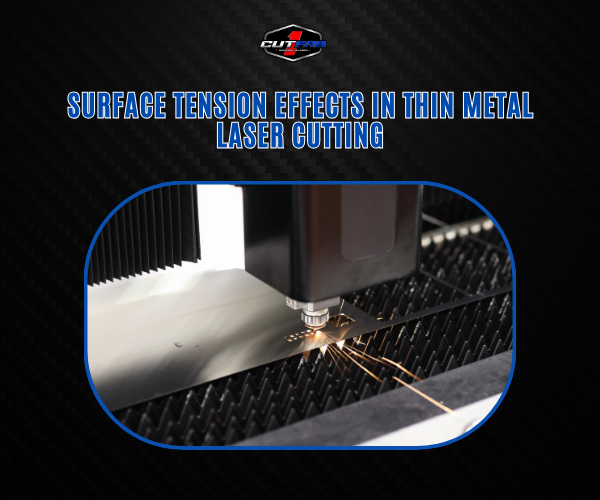

Surface Tension Effects in Thin Metal Laser Cutting!

Cutting thin sheet metal with a laser may look straightforward, but in practice, it introduces a unique set of challenges that don’t appear in thicker materials. When the material thickness drops below a certain point, the physics of surface tension, heat flow, and beam interaction change dramatically. As a result, operators often face issues like part warping, micro-burr formation, excessive melting, and inconsistent kerf width — all common laser cutting thin metal issues that can disrupt quality and slow production.

Thin materials respond faster to heat, which means they also distort faster. Even small fluctuations in energy or focus can cause noticeable imperfections. Molten metal behaves differently on thin sheets because there isn’t enough mass to absorb heat or stabilize the melt pool. This amplifies the role of surface tension, causing the molten edge to pull, round, or cling instead of releasing cleanly.

Understanding these challenges is the first step to controlling them. And in high-precision manufacturing — where 1CUTFAB specializes — mastering the behavior of thin metals under a laser is essential for producing consistent, high-quality results.

How Surface Tension Affects Melting and Edge Quality

Surface tension plays a far greater role in thin sheet metal cutting than most fabricators realize. Because the material mass is so low, the molten pool becomes highly sensitive to how the laser introduces heat. This is where many laser cutting thin metal issues begin. Instead of flowing smoothly downward through the kerf, the molten metal often clings to the cut edge, creating micro-burrs, irregularities, and inconsistent edge profiles.

When the laser beam melts metal, it forms a liquid boundary that naturally tries to minimize its surface area. On thick plates, gravity and mass overpower this effect. But with thin sheets—especially below 1.5 mm—surface tension becomes dominant. The molten metal “pulls back” toward the sheet surface, preventing the clean ejection needed for a crisp cut. This is why you’ll often see rounded top edges, small beads of re-solidified material, or even micro-bridges that shouldn’t exist at all.

Another complication arises when the molten pool becomes unstable. Thin metals heat rapidly, and with insufficient mass to dissipate that heat, the melt zone expands unpredictably. Surface tension amplifies these movements, creating inconsistent kerf widths and slight waviness along the cut line. If assist gas pressure is not perfectly dialed in, the molten metal refuses to detach cleanly, resulting in adhesion marks or dross forming where it shouldn’t.

Surface tension also affects cooling. Thin sheets cool almost instantly, causing the molten boundary to solidify before gravity or gas flow can clear it. The result: hard-to-remove micro-burrs and unfinished edges. For industries relying on precision—electronics, HVAC, signage, and fine architectural components—these imperfections are unacceptable.

Ultimately, controlling surface tension effects is about understanding the physics at play. Once fabricators recognize how these forces shape melt behavior, they can adjust power, frequency, focus, and gas conditions to achieve sharper, cleaner edges every time.

Adjusting Laser Power and Speed for Thin Metals

When it comes to resolving laser cutting thin metal issues, dialing in the right balance of laser power and cutting speed is one of the most critical steps. Thin metals behave very differently from thicker sheets because they heat up fast, cool down fast, and offer almost no thermal buffer. This means even small miscalculations in energy input can cause melting, warping, or excessive dross. The key is not to overpower the material — it’s to control it.

Too much power on thin sheet metal leads to instant overheating. The laser penetrates faster than the molten pool can evacuate, causing edge bulging, rough kerfs, and blowouts. In extreme cases, the metal can ripple, warp, or even fuse back together mid-cut. By contrast, too little power results in incomplete penetration, increased friction, and heavy burr formation. The challenge is finding the sweet spot where the laser melts just enough material at a steady rate that matches the speed of motion.

This is why fast cutting speeds are generally preferred for thin metals — but only when paired with appropriately reduced power. Higher speeds minimize heat buildup and keep the melt pool narrow, preventing distortion and uneven edges. However, going “too fast” introduces its own problems, such as striation marks or incomplete cuts. What fabricators need is a calibrated ratio: a power setting that melts cleanly and a speed that ensures the molten metal exits before surface tension draws it back to the edge.

Pulse modulation also becomes essential. Using shorter, more precise pulses prevents thermal overload while maintaining cutting stability. Combined with the right focal offset and assist gas pressure, this allows the laser to remove molten metal efficiently without causing edge deformation.

In short, thin metals demand finesse. The interplay between power and speed determines how smoothly the molten pool forms, how quickly it’s evacuated, and how clean the final cut appears. When optimized, it eliminates most of the common defects — ensuring the kind of flawless edge quality that high-precision applications and brands like 1CUTFAB always pursue.

Choosing Proper Assist Gas and Focusing Techniques

Assist gas selection and precise focusing are two of the most underestimated factors in solving laser cutting thin metal issues. Because thin sheets react instantly to heat, the assist gas must do more than just blow molten material out of the kerf — it must also stabilize the melt pool, cool the cutting zone, and prevent excessive oxidation or surface defects. When combined with correct focal positioning, these choices drastically improve edge smoothness and cut reliability.

For thin metals, nitrogen is often the preferred assist gas because it produces clean, oxide-free edges. This is especially important for stainless steel and aluminum, where even minor oxidation can lead to discoloration, micro-cracking, or downstream finishing problems. Nitrogen also cools the cut more effectively, preventing large heat-affected zones and reducing the risk of edge warping. Oxygen, while useful for thicker materials due to its reactive cutting boost, can introduce too much heat into thin sheets, causing burn marks, widened kerfs, or inconsistent edge profiles. Air cutting can be cost-effective, but only when surface quality isn’t the top priority.

Focusing techniques play an equally critical role. Thin materials require a tighter focal spot and often a slight negative focal offset to ensure the beam maintains intensity without burning through too aggressively. A misaligned focus — even by a fraction of a millimeter — can cause major defects: excessive dross, double lines along the cut, micro-burrs, or heat distortion. Proper focus ensures that energy density is optimized, the molten metal is expelled cleanly, and the kerf remains consistent throughout the cut.

When assist gas pressure and focal alignment work together, they counteract the influence of surface tension and heat buildup. The result is cleaner cuts, smoother edges, and significantly fewer rework requirements — exactly the outcome needed for precision-driven operations like 1CUTFAB.

Preventing Warping and Edge Distortion

Preventing warping and edge distortion is one of the toughest challenges when dealing with laser cutting thin metal issues, because thin sheets absorb heat rapidly and lack the structural rigidity to stay flat during cutting. Even small temperature spikes can cause upward bowing, rippling, or edge pulling — all of which compromise dimensional accuracy. The key is controlling heat input and stabilizing the sheet so the material stays predictable throughout the cut.

One effective method is using higher cutting speeds with lower power settings. This combination reduces the time the laser spends in any single spot, keeping the heat-affected zone (HAZ) minimal. Another important tactic is optimizing the cut sequence. Starting cuts on internal features and moving outward helps distribute thermal stress more evenly, preventing the sheet from distorting prematurely. For very thin materials, micro-joints or tabs can also help maintain part stability until the final separation.

Proper fixturing matters too. Using a fine, supportive cutting bed or a vacuum hold-down minimizes vibration, reduces flutter, and ensures the sheet stays flat even when the molten pool becomes unstable. Combined with controlled assist gas pressure — not too strong, not too weak — this prevents the sheet from lifting or shifting mid-cut.

When heat management, sequencing, and mechanical support all work together, the risk of warping and distortion drops significantly, resulting in precise, clean, and consistent cuts every time.

Conclusion – Tips for Clean, Precise Cuts

Cutting thin sheet metal with a laser is a balancing act between physics, precision, and process control. Many of the most common laser cutting thin metal issues — burrs, warping, inconsistent kerfs, or rough edges — stem from heat concentration, unstable melt pools, and the influence of surface tension. But with the right strategies, fabricators can consistently produce clean, smooth, and highly accurate cuts even on the thinnest materials.

Success begins with understanding how thin metals react differently than thicker ones. Because they heat faster and offer minimal thermal mass, power and speed must be calibrated with finesse. Lower power, higher speeds, and well-tuned pulse settings help maintain a stable melt pool without overwhelming the sheet. Surface tension, often overlooked, plays a major role in edge quality — which is why proper assist gas selection and correctly adjusted focus settings are essential. Nitrogen cutting, tight focal spots, and the right gas pressures all contribute to cleaner material ejection and smoother edges.

Preventing warping requires equally careful attention. Strategic cut sequencing, lightweight fixturing, vacuum support, and controlled heat distribution can make a dramatic difference. By combining thermal management with mechanical stability, fabricators can eliminate many of the distortions that plague thin sheet projects.

Ultimately, achieving flawless results comes down to process mastery. When power, speed, focus, gas, and support systems are aligned, thin metal cutting becomes not just manageable — but incredibly precise. These practices reflect the high standards of modern fabrication and align perfectly with the quality-driven approach trusted at 1CUTFAB.
